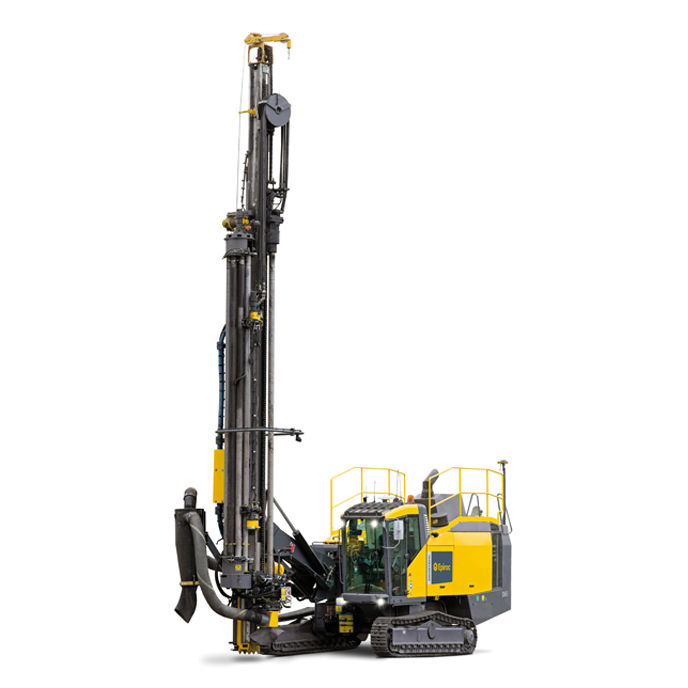

EpirocSmartROC D60
Surface drill rig for aggregate and limestone quarries, surface mining and construction
Specs
- Main application area
- Mining, Quarrying
- Drilling method
- Down-the-hole
- Hole diameter
- 110 - 178 mm / 4.6 - 7 inch
- Product family
- SmartROC
- Cabin
- Yes
- Rock drill/ DTH hammer size
- 4", 5", 6"
- Rotary head
- DHR6 H 45, DHR6 H 56, DHR6 H 68, DHR6 H 78
- Maximum hole depth
- 56 m / 183.7 ft
- Engine
- 354 kW / 475 HP
- Air capacity (FAD)
- 405 l/s / 858 cfm
- Height
- 3500 mm / 138 inch
- Length
- 12400 mm / 488 inch
- Width
- 2500 mm / 99 inch
- Weight
- 22600 kg / 49825 lb
Details
The new, efficient SmartROC D60 consistently delivers high-quality blastholes with accuracy and precision. It is loaded with smart features such as automated drilling and rod handling. The extra long feed option with 8 m pipes makes it possible to drill 16 m production holes with just one rod-adding. All these features and flexibility are packed in a rig which is economical to run due to the intelligent control of the compressor and the engine rpm. The SmartROC D60 also uses 300 liters less hydraulic oil than previous versions and features fewer hoses and pumps. This helps to further reduce costs and makes servicing easier, while increasing sustainability and reducing the environmental impact of the rig.
The SmartROC D60 is controlled via an advanced Rig Control System (RCS) displayed on a touch screen inside the comfortable, air-conditioned FOPS and ROPS-certified cabin. It presents everything from drilling parameters to real-time Measure While Drilling (MWD) data.
A SmartROC rig from Epiroc can significantly raise quality across the whole operation.
