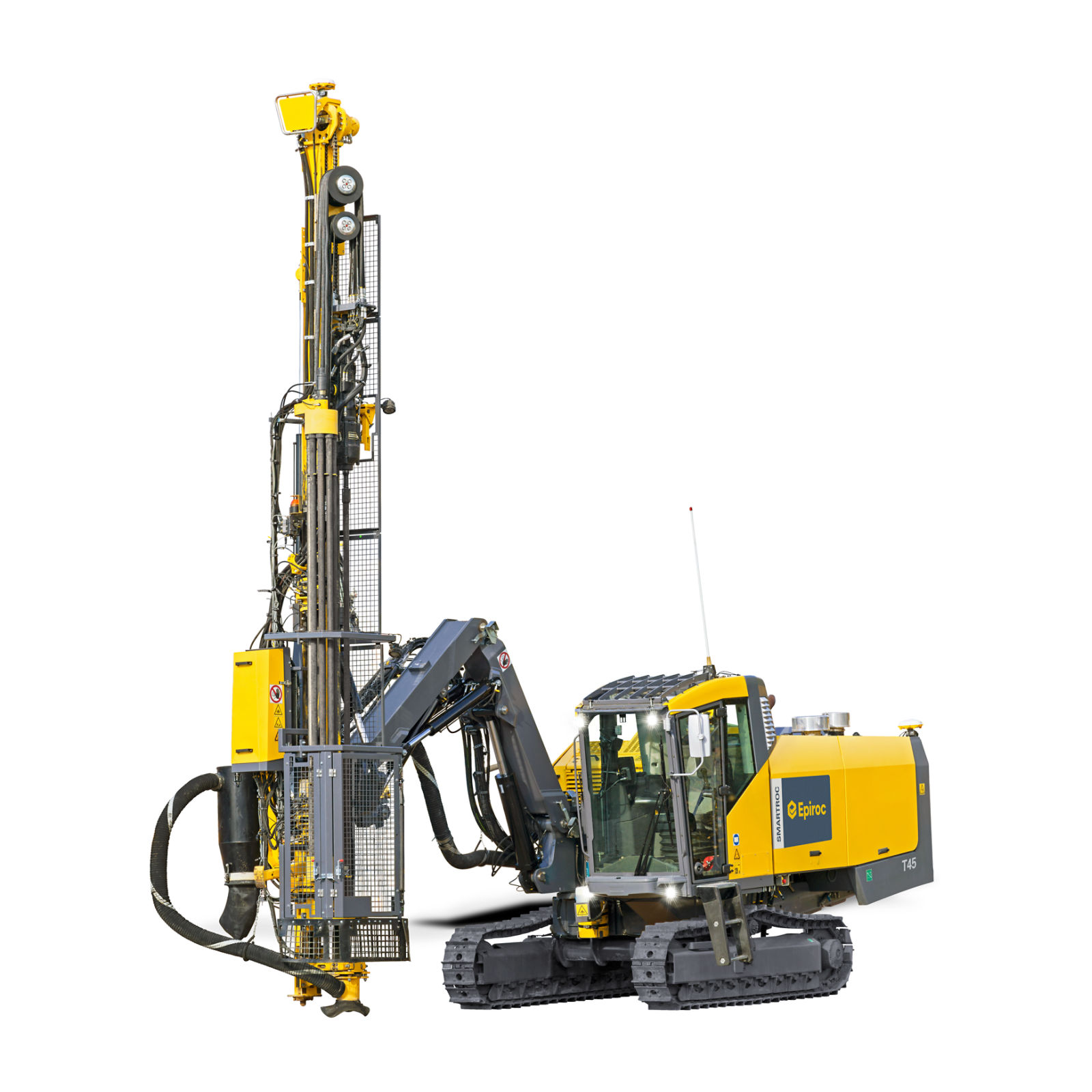

EpirocSmartROC T45
Surface drill rig for mining and quarrying
Specs
- Main application area
- Mining, Quarrying
- Drilling method
- Tophammer
- Hole diameter
- 89 - 140 mm / 3.5 - 5.5 inch
- Product family
- SmartROC
- Cabin
- Yes
- Rock drill/ DTH hammer size
- COP SC25-HE, COP 3060
- Maximum hole depth
- 36 m / 118 ft
- Engine
- 250 kW / 340 HP
- Air capacity (FAD)
- 223 l/s / 473 cfm
- Height
- 3300 mm / 130 inch
- Length
- 10700 mm / 421.5 inch
- Width
- 2500 mm / 98.5 inch
- Weight
- 20100 kg / 44313 lb
Details
With the SmartROC T45 you're in control. The rig features an intelligent control system which presents information to the operator via an easy-to-use touchscreen interface. This system constantly monitors compressor load and engine RPM to ensure no fuel is wasted and that environmental impact is kept to a minimum. A SmartROC does more of the work itself and reduces the demands placed on the operator. The SmartROC T45 boosts productivity, reduces fuel costs, and provides you with valuable data to help keep you on top of your business. Furthermore, clever Smart options and features such as Hole Navigation System (HNS), Measure While Drilling (MWD), AutoPos, and ROC Manager help to keep you ahead of the pack.
